IP CONTROLLERS
Introducing the IoT-NXCBC-16P-8044-D: an IP controller
with an LCD screen, 16 base points (8UI, 4DO, 4AO), and configurable web functions. Ideal for fan units and
temperature control, it manages various components and supports extension modules like NXM-B-0800 or NXM-B-6002. It also acts as a Modbus Master, Master Bridge, or BACnet Router gateway, enhancing connectivity.

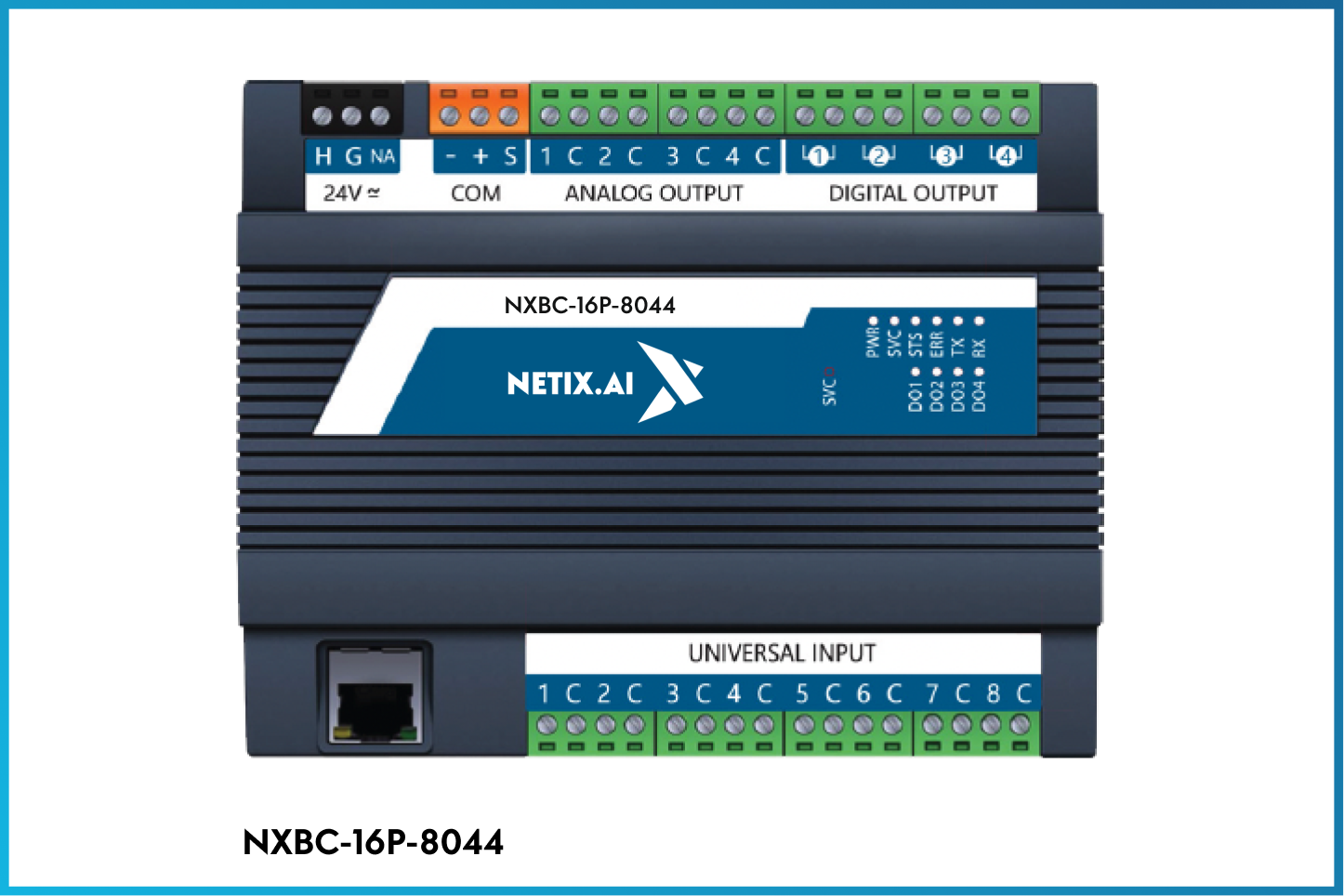

NXCBC-16P-8044 is a versatile IP controller with 16 base points (8UI, 4DO, 4AO) and configurable web functions. Ideal for fan units and temperature-humidity control systems, it manages various components like fans, pumps, heat exchangers, and valves. Compatible with extension modules such as NXM-B-0800 (8DI) or NXM-B-6002 (6U/DI, 2DO), it offers flexible system design. It also functions as a Modbus Master, Master Bridge, and Bacnet Router gateway.
NXCBC-16P-8044-D: An IP controller with an LCD screen, 16 base points (8UI, 4DO, 4AO), and 8 universal inputs (AI/DI). Ideal for fan units and temperature-humidity control systems, it supports configurable web functions and extension modules like NXM-B-0800 or NXM-B-6002. Additionally, it functions as a Modbus Master, Master Bridge, and Bacnet Router gateway for enhanced connectivity.

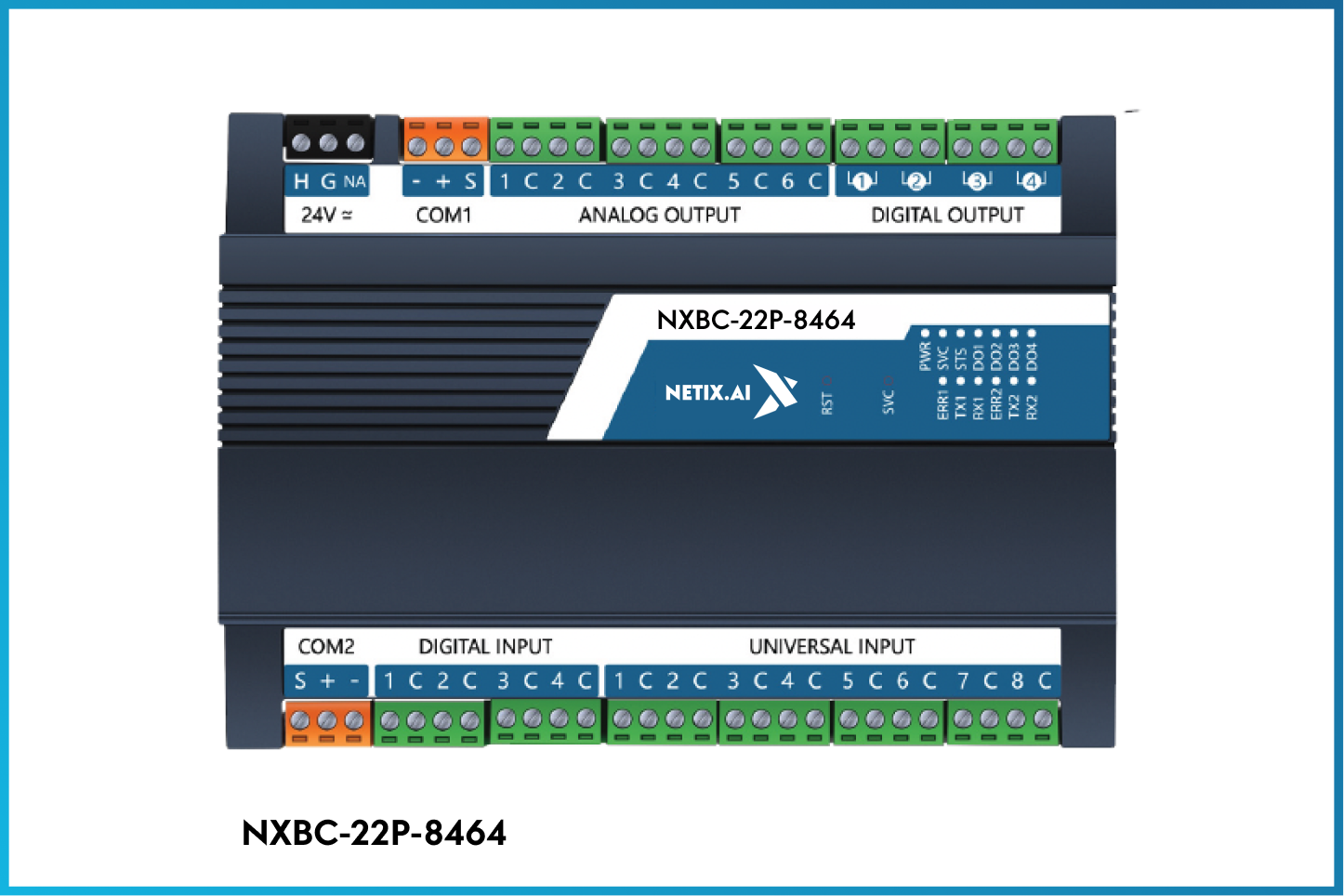

The latest NIAGARA NXCBC-22P-8464 controller offers flexible point allocation with 22 basic points (8UI, 4DI, 4DO, 6AO) and standard communication protocols like BACnet IP, BACnet MSTP, and Modbus RTU. Users can customize solutions with IO extension modules like NXM-B-0800 or NXM-B-6002, enhancing competitiveness. Additionally, with the optional NXM-IP-0800 module, it can be upgraded to support WiFi and Ethernet, making it a versatile controller supporting BACnet IP, Modbus IP, and Sedona protocol.

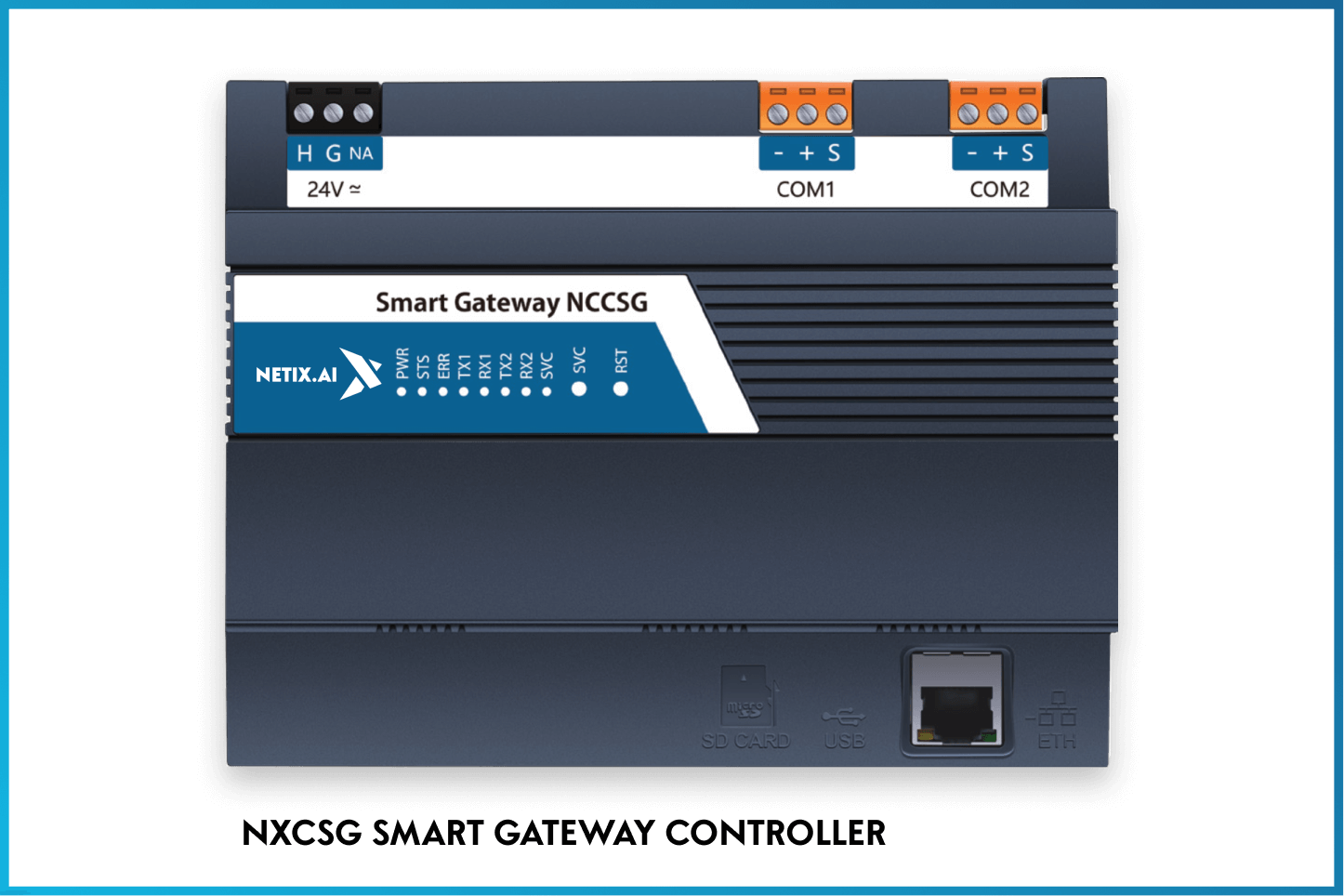

The NXCSG is a smart gateway device featuring two isolated RS485 interfaces, functioning as a Modbus Bridge and BACnet Router. It enables direct release of Modbus RTU or BACnet MSTP devices via Modbus TCP or BACnet IP protocol. Additionally, the optional NCCSG model allows for use as a BACnet client or Modbus Master on the RS485 bus, facilitating seamless protocol conversion for building automation systems and rapid integration.

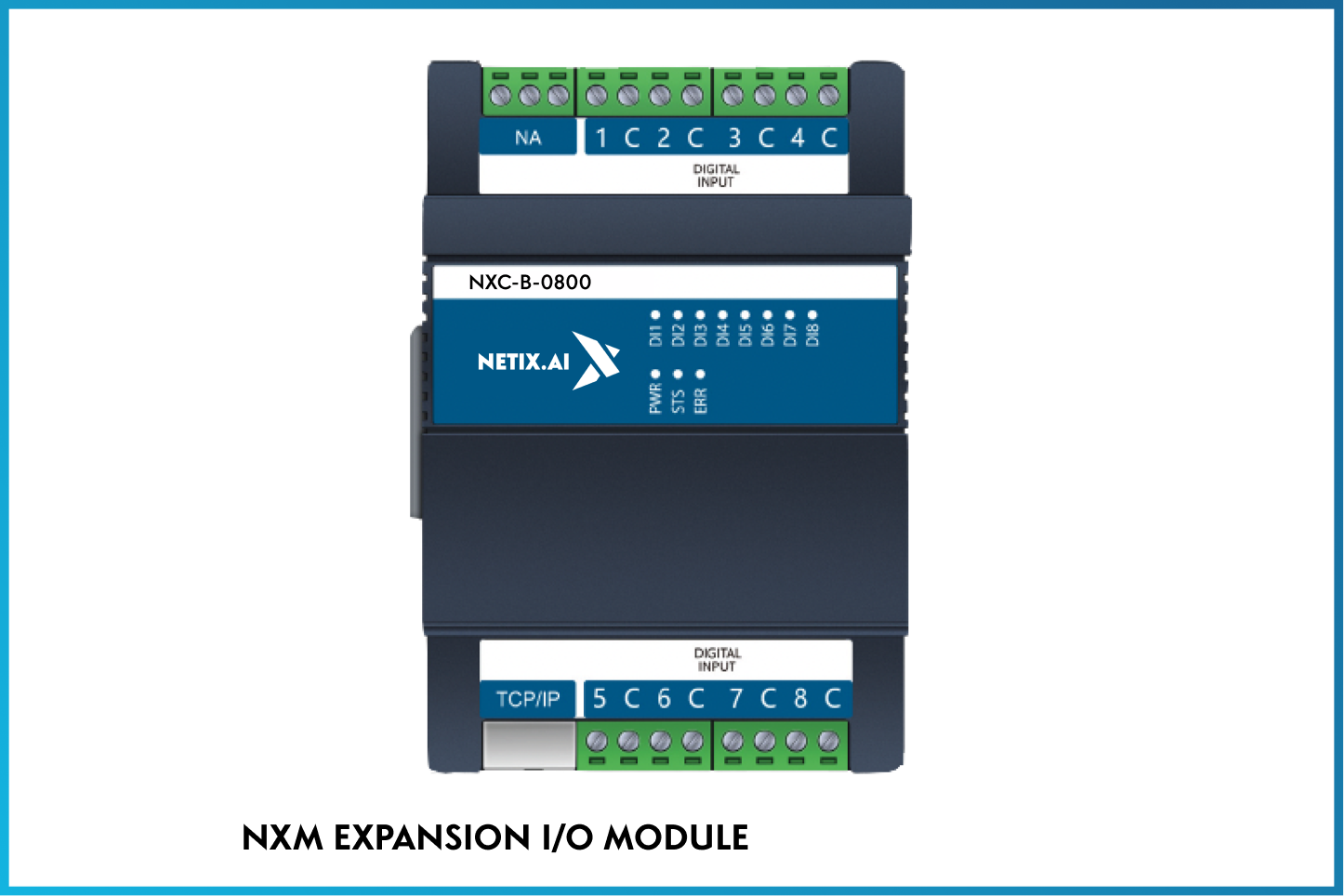

The add-on modules designed for NX Series controllers provide enhanced flexibility in expanding IO point capacity through Modbus RTU or BACnet MSTP protocols. NXM-IP-0800 extends with 8 digital inputs and IP interfaces, NXM-M-6002 offers 6 versatile inputs and 2 digital outputs, and NXM-M-0800 provides 8 digital inputs.
